Ⅰ.Brief introduction

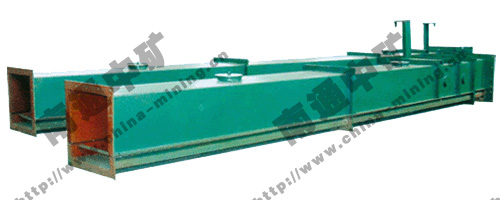

Air slide is a pneumatic conveying equipment widely used to convey dry and powder material. In cement industry , it’s usually used in conveying cement and raw material powder. It is characterized by easy maintenance, good sealing, no noise, safe and dependable operation, lower power consumption, easy to change the conveying direction, feeding in many points and discharging in many points. The main parts of air slide is
airslide fabric, this series
airslide cloth is made of PETS-6(terylene) synthetic fibre which is a new type of ventilation and which is characterized by high temperature resistant(high to 150 centigrade), rust resistant, abrasion resistant, low moisture content, light weight, plain surface and long life etc.
Air chute use air flow along the pipeline conveying device for grain materials. There are suction, pressure delivery and mixed three types. Its working principle is to use the kinetic energy of the airflow so that the particulate material was suspended state along the air flow along the pipeline:
Ⅱ. Technical capacity:
Air chute use air flow along the pipeline conveying device for grain materials. There are suction, pressure delivery and mixed three types. Its working principle is to use the kinetic energy of the airflow so that the particulate material was suspended state along the air flow along the pipeline:
1)Suction type:
After the start of the exhaust fan, the whole system assumes a certain degree of vacuum. Under the effect of pressure difference, the airflow causes the material to enter the suction nozzle and is sent to the separator at the discharge place. The material is separated from the air flow, Bottom of the discharge, the air purification by the filter and then discharged into the atmosphere by the muffler. Suction type has the advantages of simple feeding, can also absorb the material from several. However, short transmission distance and low productivity. For high sealing requirements.
2)Pressure delivery:
Blower will be air into the pipe, the material from the feeder, air and material mixture along the feeding tube to be sent to the discharge Department, the material discharged by the separator, the air purification by the dust into the atmosphere . Features and suction-type contrary, can be transported to several materials at the same time, the transmission distance is longer, higher productivity, but the structure is complex.
3)Mixed type:
For the above two forms of combination
